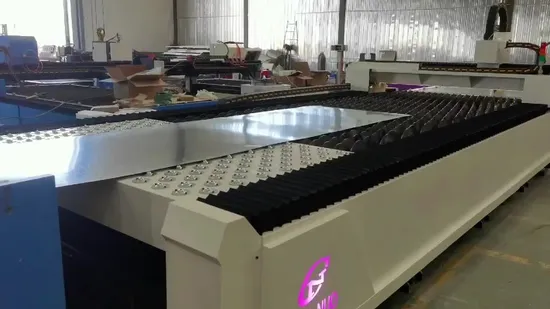

Huaxia Laser 7513 Iron Steel Fiber Laser Cutting Machine 3kw 6kw CNC Laser Production Line for Coil Metal Sheet
Coil production line including fiber laser cutting machineSuitable for coiled materials, a production line that integrat
Description
Basic Info.
| Model NO. | HXF-7513 |
| Structure Type | Desktop |
| Laser Classification | Fiber Laser |
| Laser Technology | Laser Cutting |
| Reducer | Japan Shimpo |
| Motor and Drive | Japan Yaskawa 850W |
| Water Chiller | Cw6200 |
| Pneumatic Parts | Korea |
| Laser Head | Shanghai Empower |
| Control System | China Cypcut |
| Laser Power | China Raycus 1000W |
| Transport Package | Plywood Case After Packed by Wrapping Film |
| Specification | 1500*3000mm |
| Trademark | HuaXia |
| Origin | China |
| HS Code | 8456110090 |
| Production Capacity | 30 Sets/Month |
Product Description
Coil production line including fiber laser cutting machineSuitable for coiled materials, a production line that integrates a flattening machine, a feeding table, a metal cutting machine, and a conveying table.
Coil materials are continuously cut and batch processed through the automatic feeding table. Thereby improving processing efficiency and saving material costs.
Coil fiber laser cutting machine has automatic uncoiling, leveling, feeding and cutting functions to ensure the continuity of processing and production and improve processing efficiency. Assembly line production and batch processing reduce labor intensity and save manpower.Unloading workbench
After the cutting is completed, the workpiece is automatically sent to the unloading table, saving time and improving work efficiency.Raytools Fiber Laser Cutting Head with anti-crash function, good sealed, high pressure resistant, auto-tracking system and anti-crash and stop system can protect good cutting qualiy and longer the life of lens.Sturdy plate-welding and tempered heavy machine body, for cutting metal sheets.
Gantry: Aluminum alloy die pressure casting, watering integrated beam. Has the advantages of light and stable structure, energy saving, light weight, small inertia and good dynamic performance.Fiber Laser Source, used IPG, Raycus or MAX laser, with better performance, ultra-low noise, high stability and ultra-long lifetime for 100000 hours.Water Chiller, dual-temperature, cooling for laser source and laser head. Control panel, you can design the patterns you want here. Or you can import patterns via USB flash drive.
Equip with Cypcut or NC-Studio (Weihong) control system, Chinese top brands. Integrated special function module for laser cutting control, powerful, good man-machine interface and easy operation.
| Technical Parameters | |||
| Model | CN-3015-500W | CN-3015-1000W | CN-3015-1500W |
| Laser type | fiber laser | ||
| Laser power | 500w | 1000w | 1500w |
| Machine power | ≤8kw | ≤12kw | ≤15kw |
| Laser wavelength | 1070-1080nm | ||
| Working area | 3000mm×1500mm | ||
| X/Y/Z axis stroke | 1530mm/3050mm/80mm | ||
| Cutting speed | Depends on the materials and its thickness | ||
| Repeated positioning accuracy | ±0.02mm | ||
| Cooling type | water cooling | ||
| Aiming and positioning | red light | ||
| Voltage | 3 phase 380V/50Hz/60A | ||
| Machine occupy space | 9000*5000MM | ||
Application area Widely used for :sheet metal cutting, pipe (needs to add another tube cutting device):stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum steel, manganese, all kinds of alloy plate,rapid processing and so on. Widely used in: Electrical power, auto parts, mechanical equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising decoration, car decoration, sheet metal chassis cabinets, hardware, lighting, display equipment, precision parts, all kinds of metal cutting industry etc.
Packing and shipping
Contact:Jinan Huaxia Machinery Equipment Co.,LtdConnect Person:Claire
